Mechanical concealed cistern wall hung toilet frame with flush plate supplier

Mechanical concealed cistern wall hung toilet frame with flush plate supplier

Traditional Wall hung WC Frame with Front Operation. The thickness of cistern is 90mm.

  • Item NO.:

    CJ701
  • Order(MOQ):

    50
  • Product Origin:

    Xiamen, China
  • Color:

    Blue or Grey
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30~45 Working Days
Product Details

Thickness of cistern 90mm concealed in the wall with universal frame for wall-hung WC with dual flush.

Concealed Cistern:

Made of HDPE by blow moulding with very high strength.

With EPS insulation shell bonded to the exterior of cistern to prevent the formation of water condensation.

84mm thicknesss including EPS shell,saves maximum spaces.

Capacity suitable for 3/4.5 litres,3/6 litres, and 4/7 liters.

Inlet Valve:

The inlet valve is designed with very low noise,very accurate  control of water level,high resistance to high pressure and sensitive response under very low pressure,with normal working pressures from 20kpi and 1000kpi.

Tested under the salted water.5 years guranttee.

Outlet valve:

The outlet valve is specially designed that the flush volume can be adjusted precisely and easily according to customer's different requirments,and can be replaced very easily.

Can be adjusted to 3/4.5 litres,3/6 litres, and 4/7 liters.

Silicone seal washer allows excellent sealing tightness,anticorrosion and long life span.


Quick Details

Place of Origin: Fujian, China
Brand Name: OEM/ODM
Model Number: CJ701
Feature: Concealed Tank, Dual-Flush
Type: Lower Cistern
Toilet Tank Material: HDPE
Product Name: concealed cistern
Model No.: CJ701
Height: 1168mm + 200 mm
Cistern Material: HDPE outlet bend
Certifications: CE/Wras
Width: 80 mm
Length: 500 mm
Flush volume: 3/4.5,3/6, 4/7 L
Frame: 40*20*2.5
Flush Plate: ABS

Explosive Drawing
OEM ODM concealed cistern

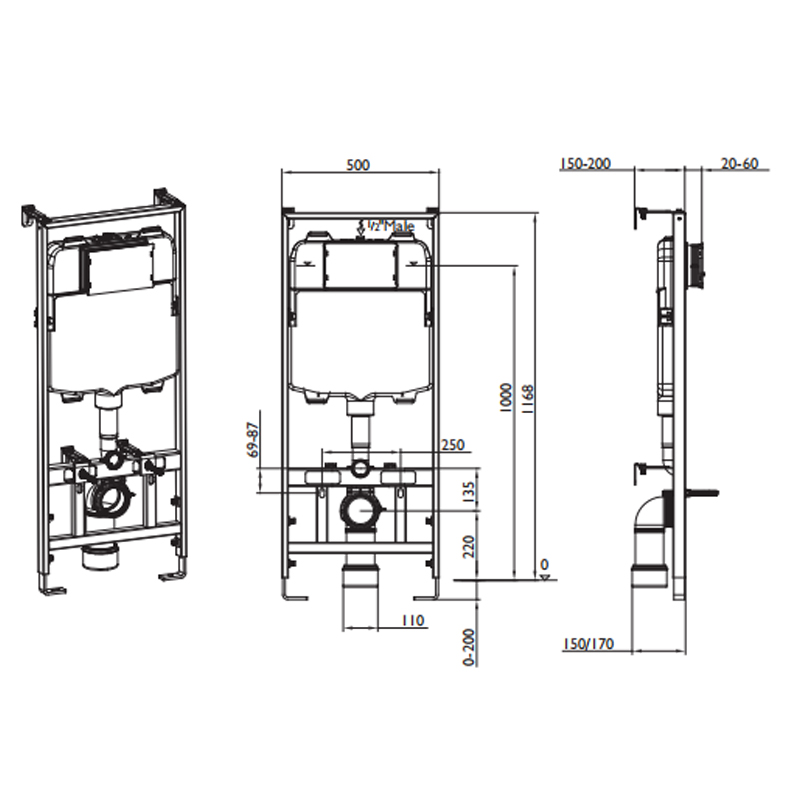

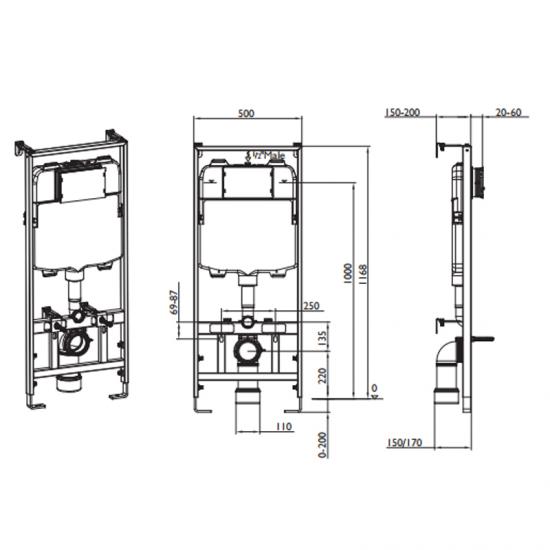

Dimension Drawing:

wholesale good quality concealed cistern
