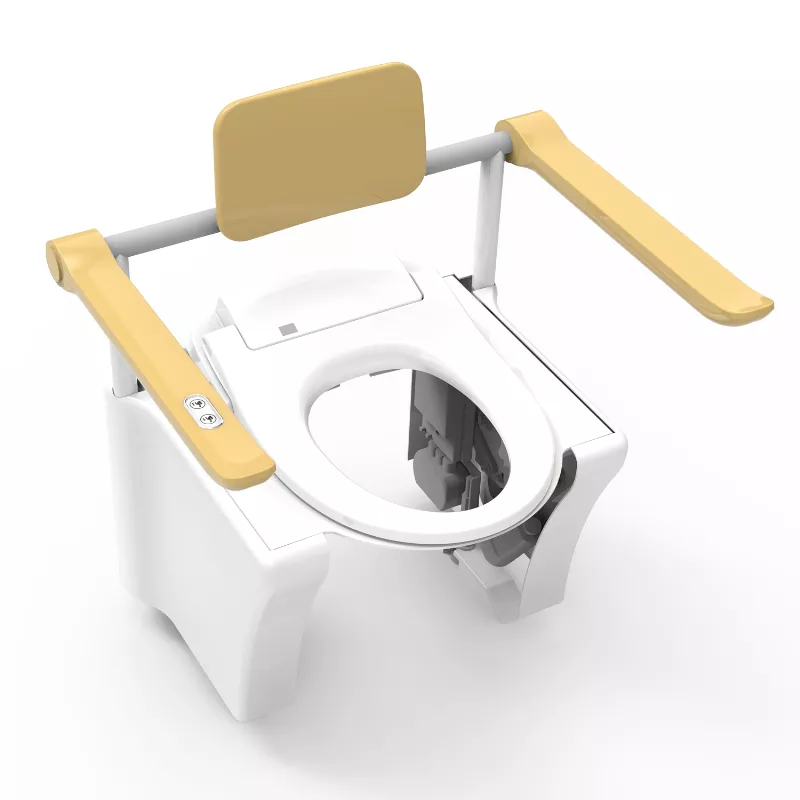

Electronic Toilet Booster Seat for Agedcare Disabled healthcare

Oceanwell offers Electronic Toilet Booster Seat for Agedcare Disabled healthcare,electronic Toilet lift,etc. High quality,affordable & available in a wide range...

Item NO.:
L002-000
Order(MOQ):
20
Payment:
30% deposit.
Product Origin:
China
Color:
white
Shipping Port:
Xiamen Port
Lead Time:
30-45 working days

Inquire Now

Product Details

Electronic Toilet Booster seat for Agedcare Disabled healthcare !

Effort-saving solution with adjustable toilet height and position to raise body up from the toilet.Electronic toilet booster to help Aged Disabled people standup easily.

Feature:

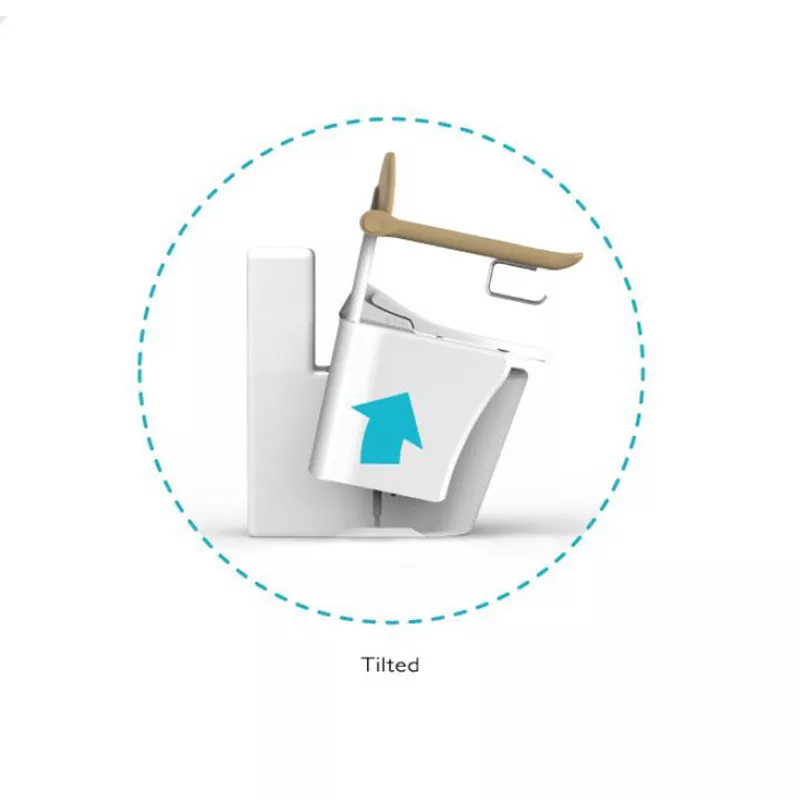

Tilt lifting meets the needs of the elderly and people with reduced mobility

Max. Load of 200 kgs

Foldable arm design to save space, with max. load of each side: 100 kgs.

Easy access design with operation buttons on the right armrest, for raising body up from the toilet

Three installation height positions for armrest and backrest, with the interval of 20 mm.

Adjustable height of support on the ground suitable for different height of floor-standing and wall-hung toilet.

Material:

Backrest: PU soft material with multi-layer plywood and steel support inside

Armrest: PP material with steel support inside

Booster Body: steel panel with coating finish

Protective cover: Plastic PS

Technical Specification:

MODEL	L002-000
Product name	Electric toilet booster
Lifting way	tilt lifting
tilt angel range	0~15°
body	powder coating steel
Rated Voltage	AC 220-240V,50/60Hz
Electric current	1.6A
Duty cycle	10%, Max. 2 min operate/Min. 18min stop
Drive mode	DC motor lead screw
Operation switch	Push-button switch
Length of power cord	2.0 M
Max. Load weight	200 kgs
waterproof rating	IPX4
Ambient temperature	4~40℃
Net weight	18 kgs
Dimension	L: 580 mm x W: 711 mm x H: 842 mm

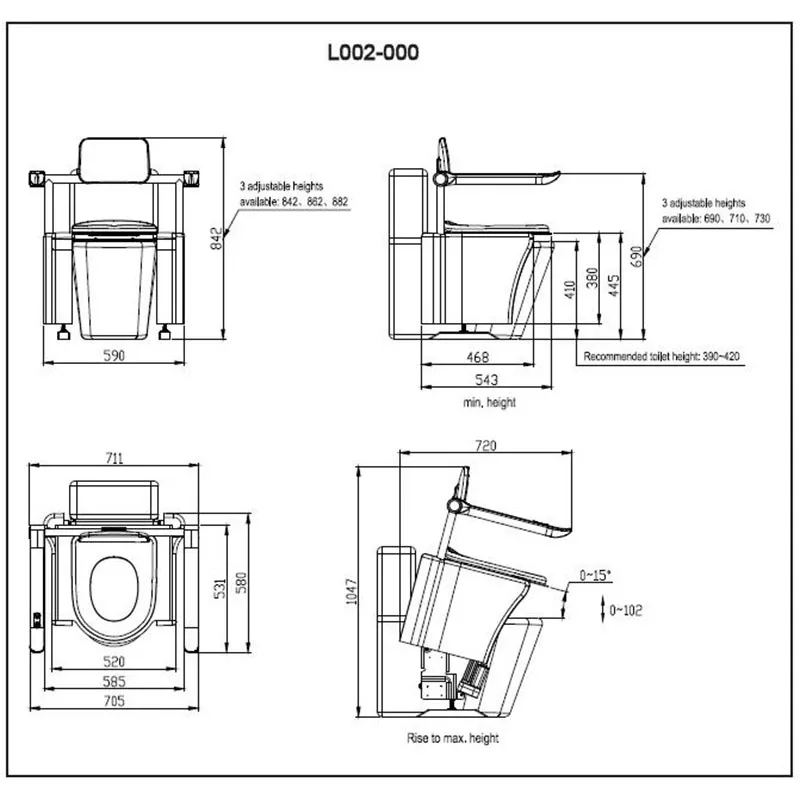

Technical Drawing:

Toilet lift drawing

Trouble Shooting:

Problem	Potential cause	Suggested action
Appliance cannot work	1.The power supply may not be turned on	Please turn on the power
	2.Adapter and controller are not well connected	Please connect the adapter and the controller
	3.Electric push rod and the controller are not wellconnected	Please insert the power plug of the electric push rod into the controller
	4.Lifting button and the controller are not well connected	Please insert the power plug of the lifting button into the controller
When operate, only one side is lifted and obvious deformation is found on the frame	1.One of the electronical push rods is not well connected to the controller	Please assure both of electronical push rods are well connected to the controller
	2.Broken power wire of the electronical push rod	Please assure both power wires of electronical push rod are in good condition
When seated and lifted, there is obvious flipping forward of the seat	1. The bottom plate of the toilet booster and the floor are not duly fixed by tack-free glue	Please assure to glue the tack-free glue on the bottom plate firstly before fix on the floor
	2.Tack-free glue is not completely solidfied	Please keep 24 hours to make the tack-free glue completely solidfying
	3.The nut on adjustable feet and bottom plate are not tightly screwed	Please assure the nut is tightly screwed
	4.No tack-free glue or expantion nut are applied to fix the ceramic and floor	Please assure to fix well of the ceramic and the floor by using the tack-free glue or expansion nut

Products photos:

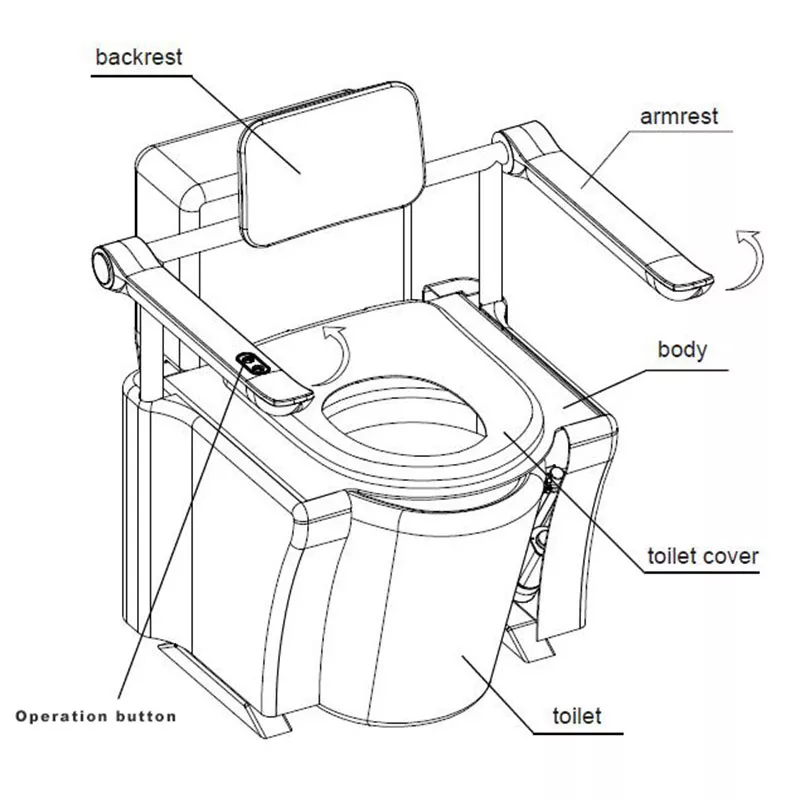

Toilet lift Function list
